Complete Revit Hatch Pattern Library
Build your Revit library the smart way—grab 160 premium hatch patterns in one go! From stone and brick to wood and siding, this bundle has everything you need to create beautiful, professional drawings without the endless searching.
A $70 value, now 33% OFF with a price of less than $0.30 per pattern!
A $70 value, now 33% OFF with a price of less than $0.30 per pattern!
Stone Package - 12 patterns
Stone Paver Package - 12 patterns
Siding Package - 75 patterns
Wood Package - 17 patterns
Stone Paver Package - 12 patterns
Siding Package - 75 patterns
Wood Package - 17 patterns
List of hatch patterns includes:

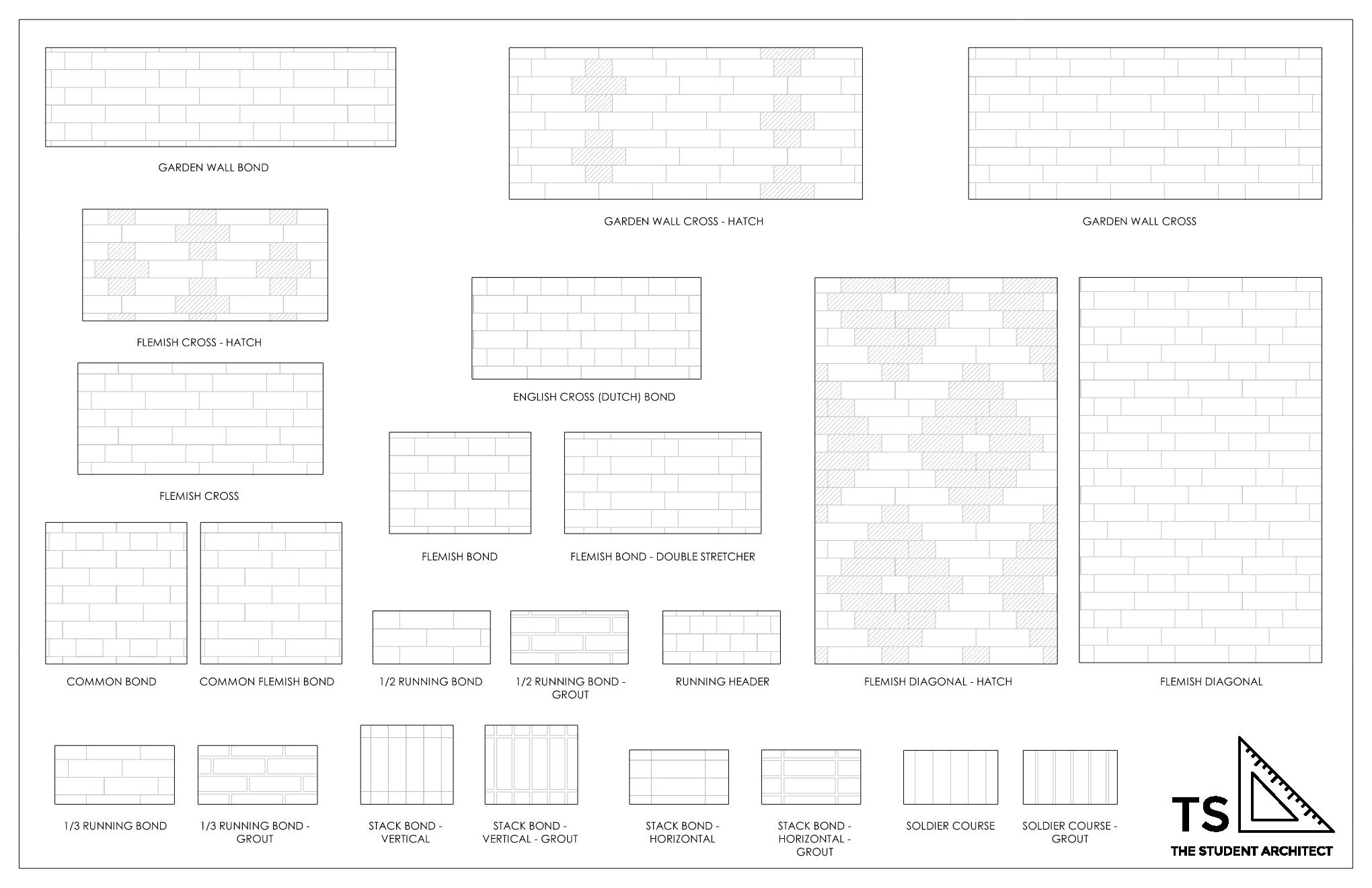

Brick Patterns:
Brick Paver Patterns:
- 1/2 Running Bond
- 1/2 Running Bond - Grout
- 1/3 Running Bond
- 1/3 Running Bond - Grout
- Running Header
- Soldier Course
- Soldier Course - Grout
- Stack Bond - Horizontal
- Stack Bond - Horizontal - Grout
- Stack Bond - Vertical
- Stack Bond - Vertical - Grout
- Common Bond
- Flemish Bond
- Common Flemish Bond
- Flemish Bond - Double Stretcher
- Flemish Cross
- Flemish Cross - Hatch
- Flemish Diagonal
- Flemish Diagonal - Hatch
- English Dutch Cross Bond
- Garden Wall Bond
- Garden Wall Cross
- Garden Wall Cross - Hatch
- Basketweave Boxed
- Basketweave Boxed Offset
- Basketweave Double
- Basketweave Mid-Century Modern
- Basketweave Mid-Century Modern 45
- Basketweave Running Bond Combo
- Basketweave Single
- Basketweave Single Offset Half
- Basketweave Single Offset Third
- Basketweave Spanish Bond Combo
- Basketweave Stacked
- Basketweave Stacked Offset
- Basketweave Variation
- Herringbone
- Herringbone 45
- Holland Combination
- Spanish Bond
- Running + Stack Bond
- Running + Stacked Bond Offset
- Grid Flat
- Grid Side

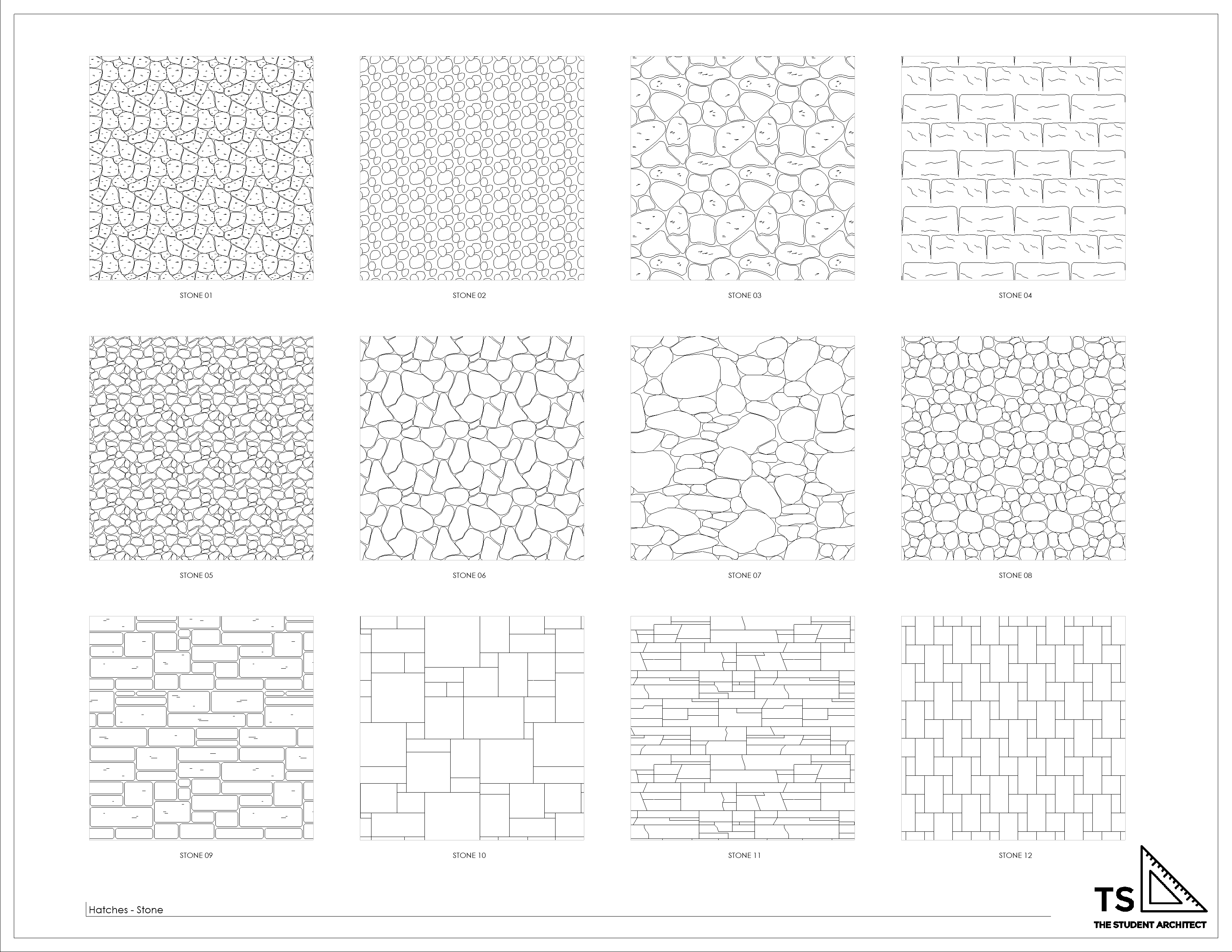

Stone Patterns:

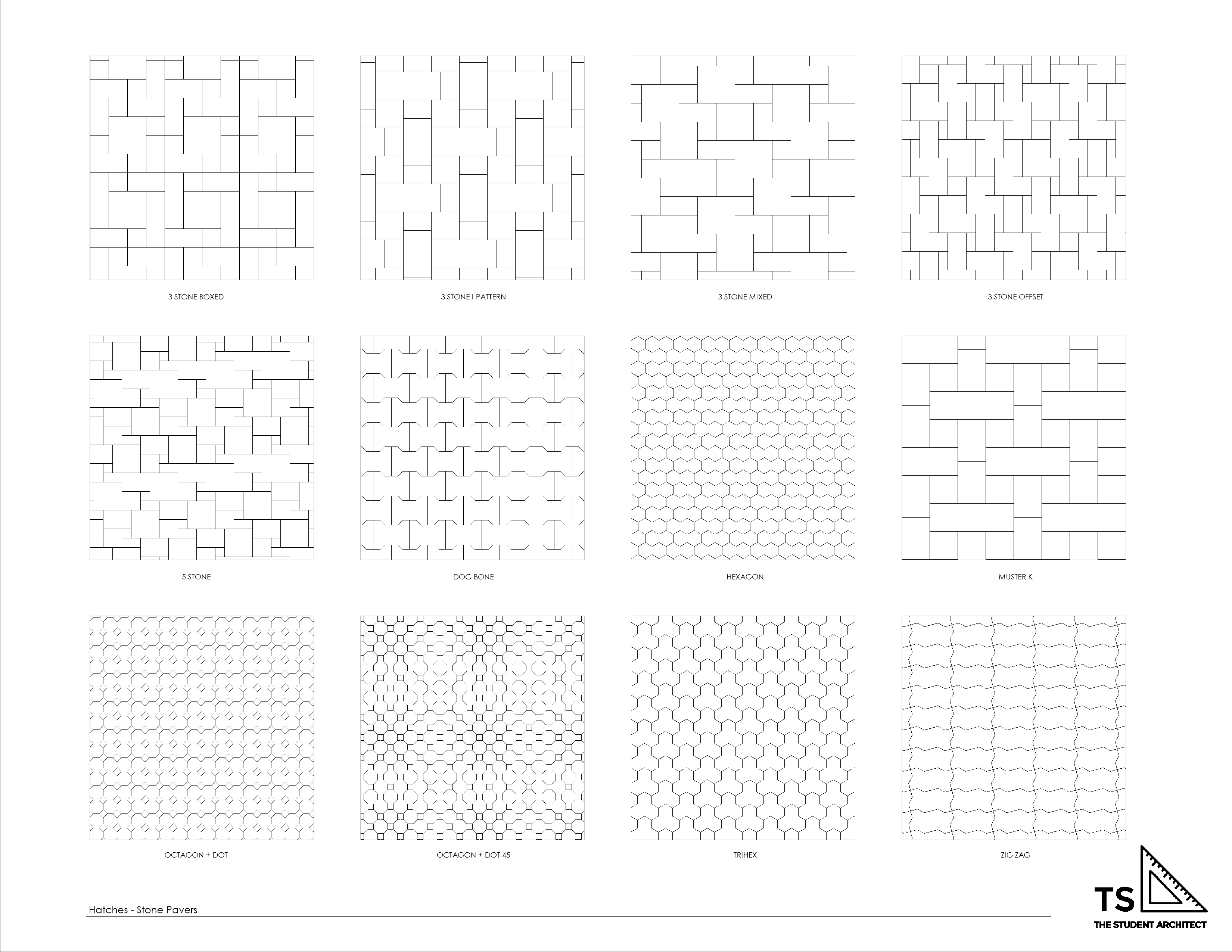

Stone Paver Patterns:
Siding Patterns:
- 12 different stone pattern variations
- 3 Stone Boxed
- 3 Stone I Pattern
- 3 Stone Mixed
- 3 Stone Offset
- 5 Stone
- Dog Bone
- Hexagon
- Muster K
- Octagon Dot
- Octagon Dot 45
- Trihex
- ZigZag

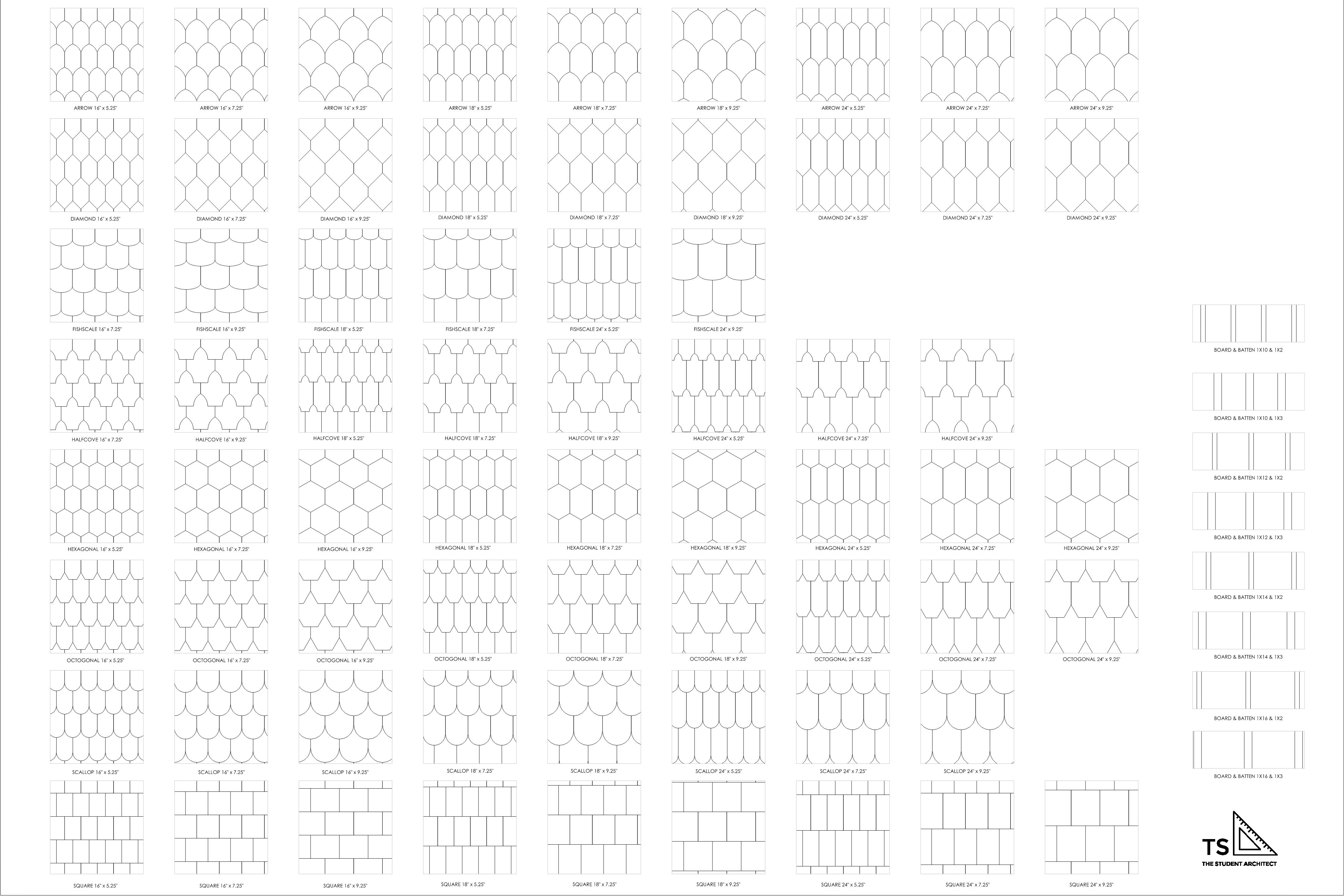

Siding Patterns:
- Arrow (9 variations)
- Board + Batten (8 variations)
- Diamond (9 variations)
- Fishscale (6 variations)
- Halfcove (8 variations)
- Hexagonal (9 variations)
- Octogonal (9 variations)
- Scallop (8 variations)
- Square (9 variations)

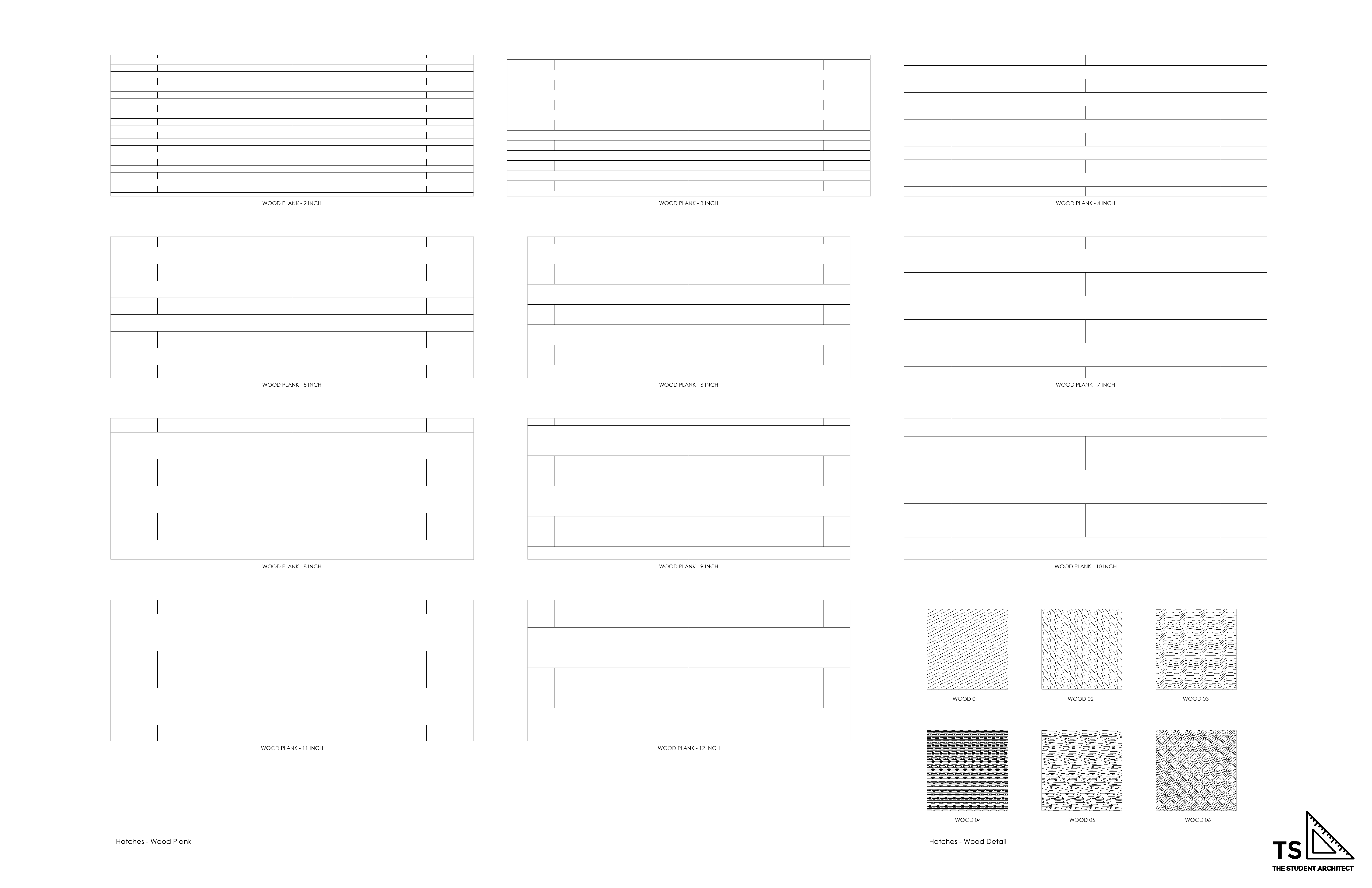

Wood Patterns:
- Wood Plank 2in
- Wood Plank 3in
- Wood Plank 4in
- Wood Plank 5in
- Wood Plank 6in
- Wood Plank 7in
- Wood Plank 8in
- Wood Plank 9in
- Wood Plank 10in
- Wood Plank 11in
- Wood Plank 12in
- Wood Detail 01
- Wood Detail 02
- Wood Detail 03
- Wood Detail 04
- Wood Detail 05
- Wood Detail 06
Included in the package:
- 160 .PAT Files
- PDFs showing each hatch pattern and name
- Bonus resources
These .PAT files are model patterns (not draft patterns). This means lines within the patterns can be selected, dimensioned, shifted, rotated, etc., and will scale with your views.You can use these hatches with any version of Revit.
